Slimshapers are so-called "minimal" shaping instruments.

Their design allows for a conical shape with a taper of 4%.

51.20 €
0.00 € 51.20 €
Sale Sold out
Tax included.
View full details
Accueil > All our products > The Slimshapers -

L’information produit

Par Stéphane Simon

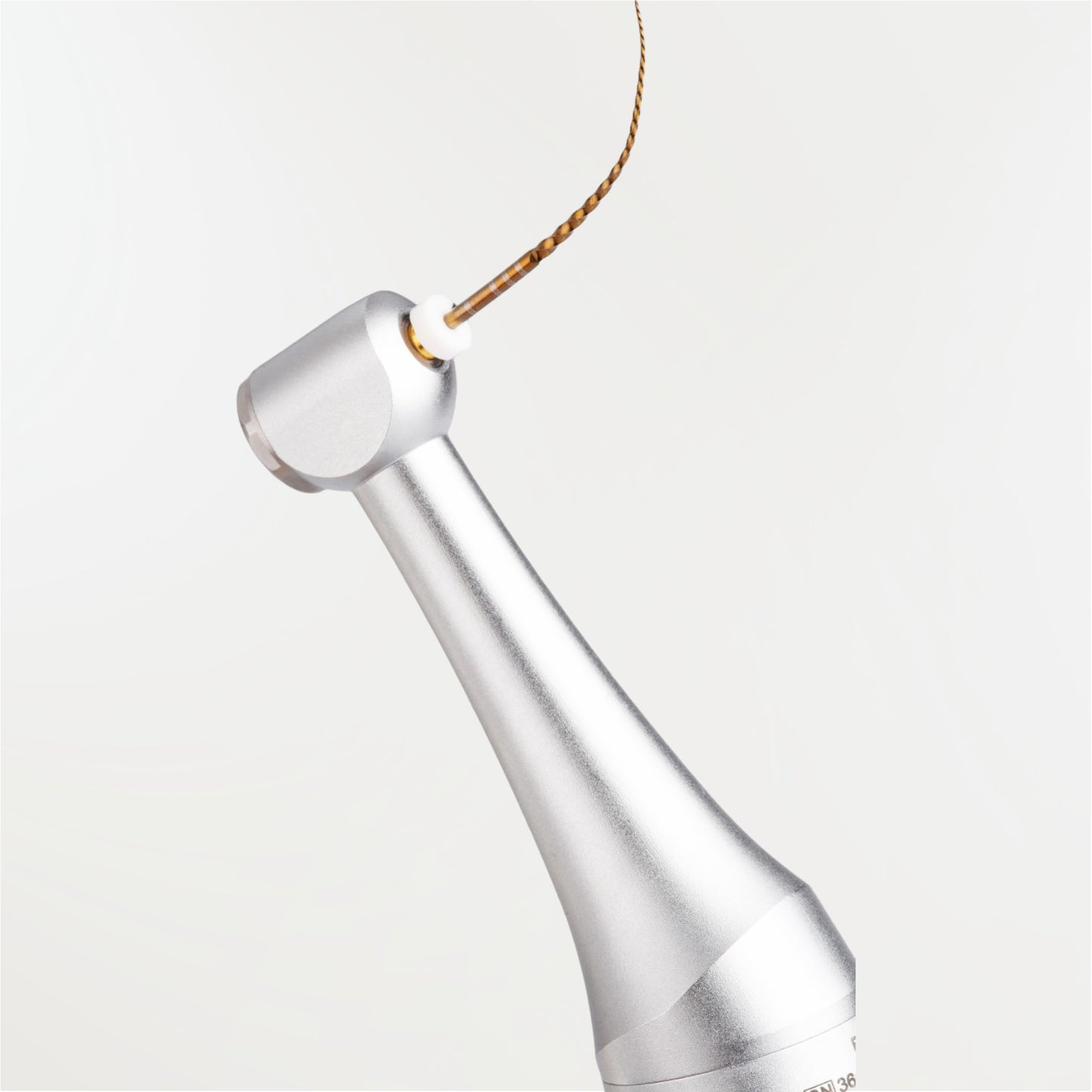

Slimshapers are canal shaping instruments with significant flexibility. Like Blueshapers, Slimshapers have received a heat treatment which gives them flexibility and resistance.

The final shaping has a diameter of 25/100 and a taper of 4% with the ZS3.

The system combines three different heat treatments depending on the position in the instrument in the operating sequence.

The ZS1 which is used for initial shaping requires more cutting efficiency than the following ones. It is therefore in Gold

The ZS2 which intervenes in a channel already partially prepared, requires more flexibility but also to maintain efficiency to prepare the passage of the next one. It is therefore in “Pink”

The ZS3, meanwhile, is the last instrument in the sequence and flexibility is favored over cutting efficiency. It is therefore made of “Blue” alloy.

The instruments must therefore be passed one after the other, always reaching the working length before moving on to the next in the sequence.

Description technique du produit

Description

The mandrels are conductive. These instruments can therefore be used with a motor coupled to an apex locator.

The operating protocol is obtained with 3 instruments which are lowered to the working length one after the other.

  • the slimshaper ZS1
  • the slimshaper ZS2
  • the slimshaper ZS3

Usage tips :

  • Recommended rotation speed: 500 rpm
  • torque control: 4N/com

Please note: The shaping obtained with these instruments is less conical than that obtained with Blueshapers for example.

It is recommended to use the other products in the system, namely SlimShaper paper and gutta cones. Alternatively, use 4% taper cones.

The instruments are sold in individual, sterile blisters in three lengths: 21, 25 and 31mm.

  • Blister sequence ZS1 / ZS2 / ZS3 6 instruments (2 sequences of three files)
  • Blisters of the same reference: 6 instruments.

Single use recommended.

Autoclave sterilizable (134°C)

Made in China for Zarc
